Product Features/Product Features
▶ Chassis capacity ≥ 0.8L
▶ Supports two types of wall mounted and vertical placement
▶ The product complies with China's mandatory CCC certification and energy-saving certification
▶ Design simple and fashionable, in line with the aesthetic concepts of most people
▶ The wavy panel design creates a more three-dimensional visual experience,
▶ ESD/EMI testing is worry free, meeting safety regulations in various regions and ensuring greater stability and reliability.
19924562658
wf.liang@huiliancloud.cn
|
参考配置 |
CPU |
Intel N150 四核四线程 主频1.0GHz，睿频3.6GHz |
|
容量 |
0.8L |
|
|
内存 |
8G DDR4 |
|
|
硬盘 |
M.2 128G |
|
|
主板 |
100*100mm |
|
|
显卡 |
Intel UHD Graphics |
|
|
网络 |
RJ45 10/100/1000M |
|
|
I/O端口 |

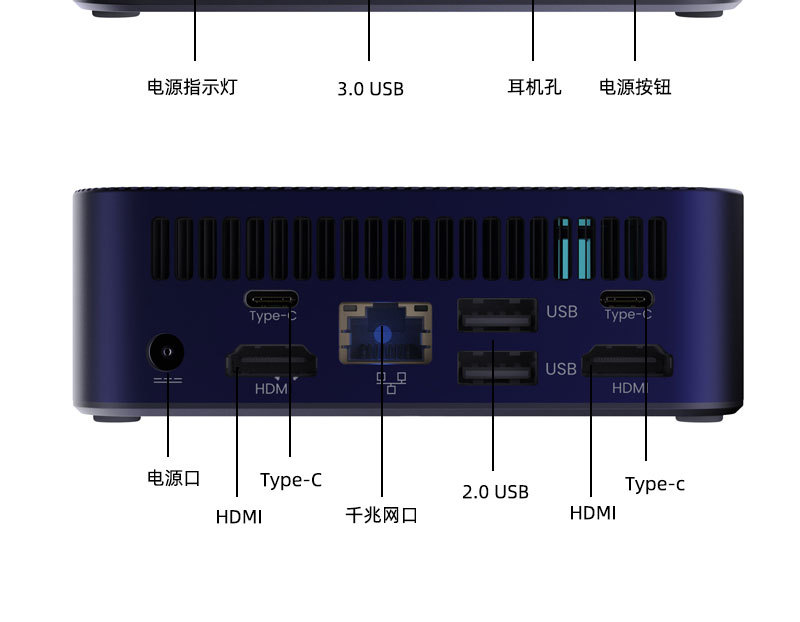

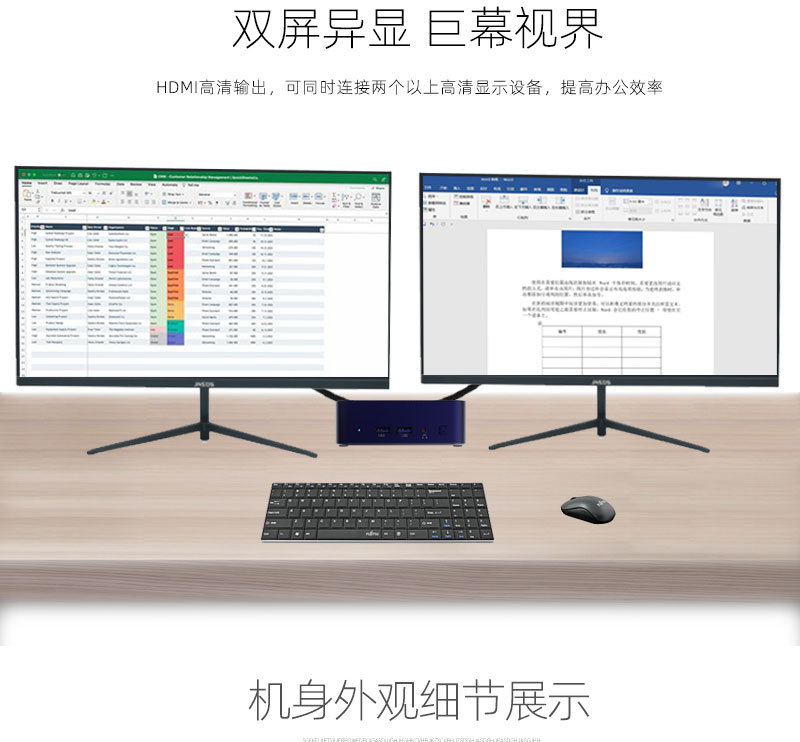

前置：USB 3.0*2；后置：USB 3.0*2,Type-C*2,3.5mm耳机孔*1，HDMI*2,RJ45*1，DC*1 |
|
|
光驱 |
不支持 |
|
|
电源 |
5.5*2.5MM,12V/3A |
|
|
材质 |
塑料 |
|
|
颜色 |
黑色/灰色 |
|
|
产品尺寸 |

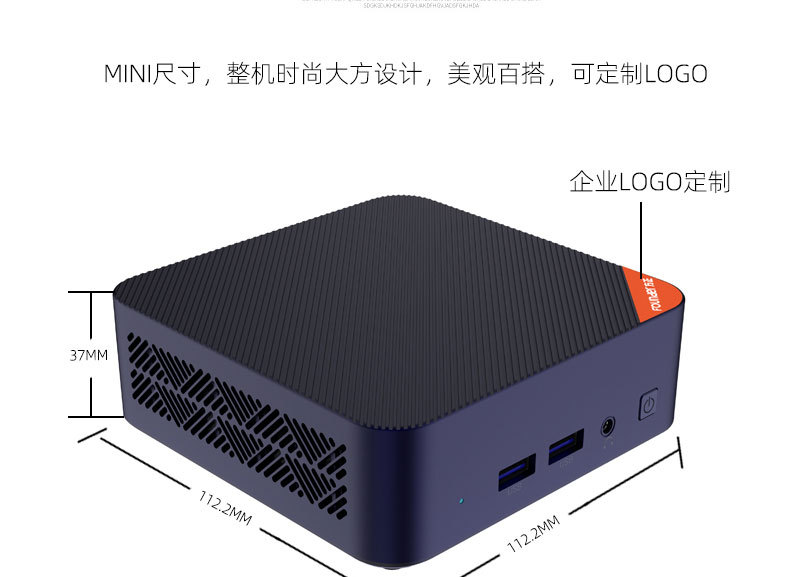

112.2*112.2*37mm |
|
|
包装尺寸 |
232*150*65mm |
|
|
可选形态 |
平放+壁挂 |
